Fakro LMS Series Steel Insulated Attic Ladders - 300/350 lb Capacity
The LWS attic ladder is a folding metal attic ladder, supplied with an insulated MDF wooden door. The door is beige on the inside and outside. Allowed maximum load of the metal ladder is 300 lbs for the 47" models and 350 Ibs for the 54" models (according to ANSI). View More
Fakro LMS Series Steel Insulated Attic Ladders - 300/350 lb Capacity
| Model Number | Rough Opening | Floor to Ceiling Height Range | Load Capacity |
|---|---|---|---|
| 66869-FAK | 30" x 54" | 7' 11" - 10' 1" | 350 lbs |
| 66868-FAK | 25" x 54" | 7' 11" - 10' 1" | 350 lbs |
| 66866-FAK | 25" x 47" | 7' 2" - 8' 11" | 300 lbs |
| 66867-FAK | 22-1/2" x 54" | 7' 11" - 10' 1" | 350 lbs |
| 66865-FAK | 22-1/2" x 47" | 7' 2" - 8' 11" | 300 lbs |

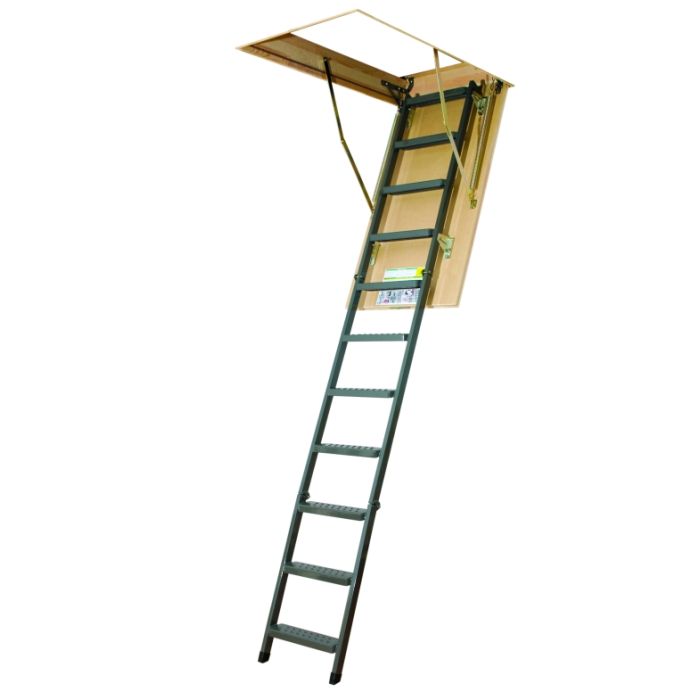

LMS Steel Attic Ladder:
The Fakro LMS attic ladder is a folding steel attic ladder, complete with an insulated MDF wooden door. The door is beige on the inside and the outside. Allowed maximum weight on the folding attic ladder is 300-350 lbs (according to ANSI). The 1-3/8" thick, heat-insulating wooden door considerably decreases heat loss. An outlying seal positioned in the milled part of the box provides a first-class tightness.
The ladder's section folding system and possibility to lock the door in fully open position ensure an ease of functioning. The double hinges' joints and stringer's profile plugging assure ladder's high toughness. The patented hatch hinge's corner prevents frame deformation. The visible side of the door is smooth.
Features:
- Max load: 300 lbs
- 1-3/8" thick insulated MDF wooden door helps to reduce energy costs – approximate R value 5.2
- Rubber gasket seal virtually eliminates infiltration losses
- All hardware fully concealed after installation
- Nearly undetectable integrated locking latch
- New design guarantees greater firmness and stability of the ladder
- When attic stairs door opens, side springs fall along with it permitting a wider and more comfortable entrance to the attic (the widest entrance on the market)
- Cleverly designed mounting brackets allow length adjustment of the ladder within 1-1/2" after installation to set ladder evenly on the floor or provide adjustment (e.g. after floor renovation)
- Smooth door surface ready for painting to match finished ceiling
- Metal opening and closing rod included
- Two (2) year 100% warranty
| Weight(LBS) | 0.000000 |
|---|
