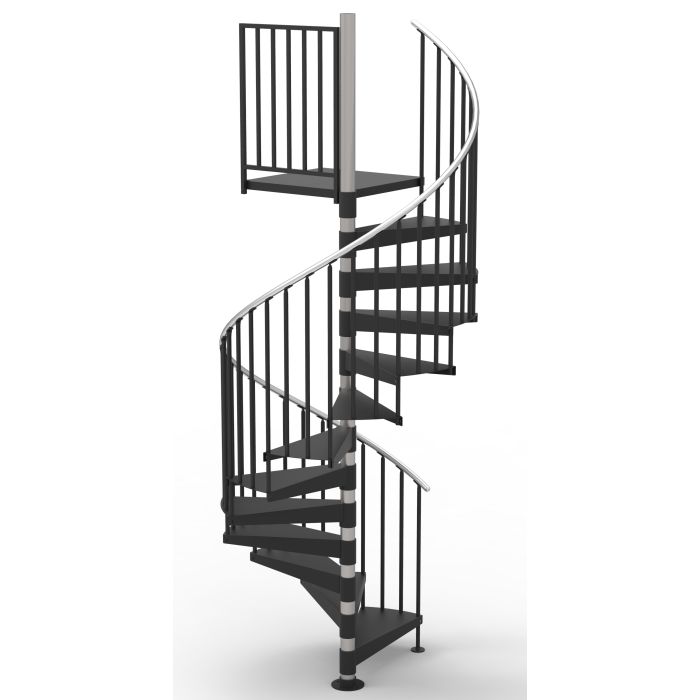

72"D Classic Iron Code Compliant Spiral Stair Kit - Primed Steel - 85"H - 152"H

The 72"D Classic Iron code compliant primed steel spiral staircase kit, our most popular model of spiral staircase, provides the same high quality and easy to install spiral stair kit that has been manufactured for over 35 years with easy to configure options. This code compliant kit is designed to comply with Universal Building Code (UBC), International Fire Code (IFC), Building Officials Code Administrators International (BOCA) and International Residential Code (IRC). View More

In stock

Product Code

72D_Classic_Iron_Code_Spiral_Stair_Kit_Primed_Steel

Be the first to review this product

From $5,243.70

To $20,140.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Customize 72"D Classic Iron Code Compliant Spiral Stair Kit - Primed Steel - 85"H - 152"H

Select Height Range

Select the floor to floor height range for your stair:

Measure the height from your finished ground floor to the finished floor above that the stair will access. Select the height range below that this floor to floor measurement falls within.

**Note: If (and only if) your floor to floor measurement falls within two possible height ranges:
By choosing the height range with the smaller maximum height your stair will have fewer steps and a larger rise between the steps. Alternatively, by selecting the height range with the larger maximum height, your stair will include more steps and have a shorter rise between the steps.

(For example, if your floor to floor height measurement is 94", it falls within both the 85" to 95" and 93" to 104" height ranges. By selecting the 85" to 95" height range, the stair will include 9 steps, and the height distance between the steps will be 9.4". Or, by selecting the 93" to 104" height range, your stair will include 10 steps and the height between steps will be a shorter 8.54".)

Quantity

+ -

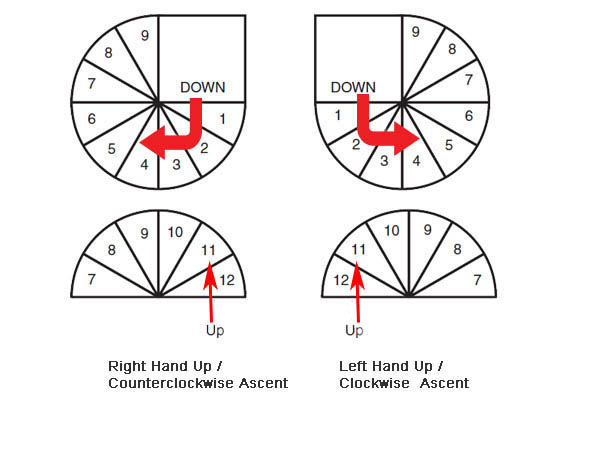

Stair Rotation

Choose the rotation for your stair:

Right Hand Up / Counterclockwise Up: As you walk up the stair from the ground floor, the handrail will be on your right side, and you will walk in a counterclockwise direction up the stair.

Left Hand Up / Clockwise Up: As you walk up the stair from the ground floor, the handrail will be on your left side, and you will walk in a clockwise direction up the stair.

Quantity

+ -

Handrail Upgrade Options

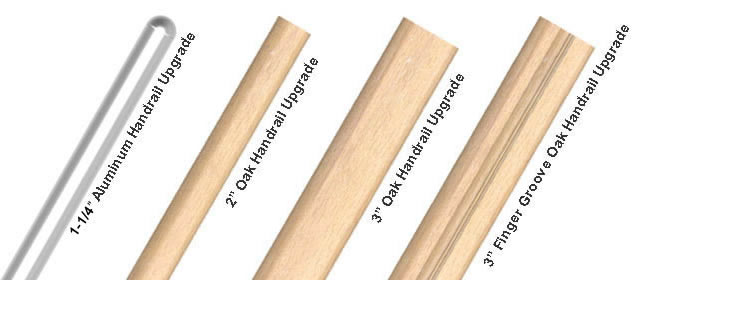

classic_iron_hr_upgrade_options4_450-rev2-brass-removed_1_1

Upgrade your handrail?

Upgrade the standard 1-1/4" O.D. aluminum handrail to one of the following options:

2" Standard Oak Handrail: 2" tall solid wood handrail
3" Standard Oak Handrail: 3" tall solid wood handrail
3" Bead and Finger Groove Oak Handrail: 3" tall solid wood handrail with finger groove for easier handrail grip

* Note: If you upgrade your handrail to a wood handrail, continuous sleeves must also be added to your stair.

Quantity

+ -

Powder Coat Option

Powder coat your stair?

The standard finish on this stair is a high quality primer coat that is ready to be painted. You can upgrade your stair to a professional finish black or white powder coat finish.

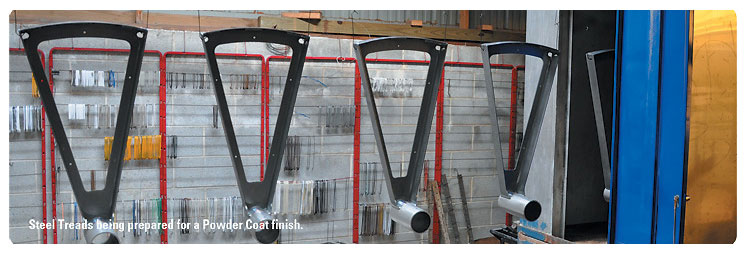

Steel powder coating is a very high end finish that cannot be matched by any home spraying system. It starts with a 5 step wash process which thoroughly cleans the steel using a mix of high pressure water, heat, and special combination rinses that prepare the steel for the finish it is about to receive. This process is superior to sandblasting which will never truly remove all the dirt and other particles on the stair; this comess from over thirty years experience with spirals trying different processes. The powder is then sprayed onto the stair which is promptly put into a specialty high temperature oven to ensure the powder is baked on properly. The stairs are then hand checked to ensure the quality of the finish. This is the ultimate in finishes and a truly professional process.

* Note: If you choose the powdercoat option, continuous sleeves must also be added to your stair.

Quantity

+ -

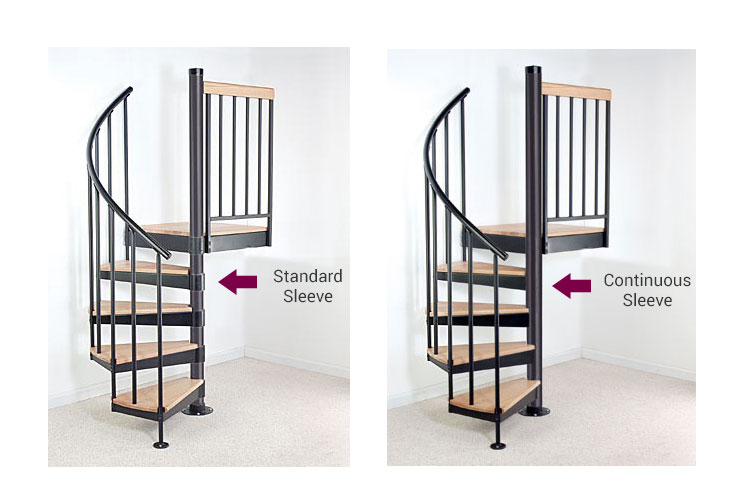

Continuous Sleeve Upgrade

Upgrade to continuous sleeves?

Built custom to your riser height, continuous sleeves provide a smooth look for your center column.

Note:
(1) If you upgrade your handrail to a wood handrail and/or select the powder coat option, continuous sleeves must also be added to your stair.
(2) You must enter in the exact floor to floor height measurement for your stair below if you add the continuous sleeve option to your stair.

Quantity

+ -

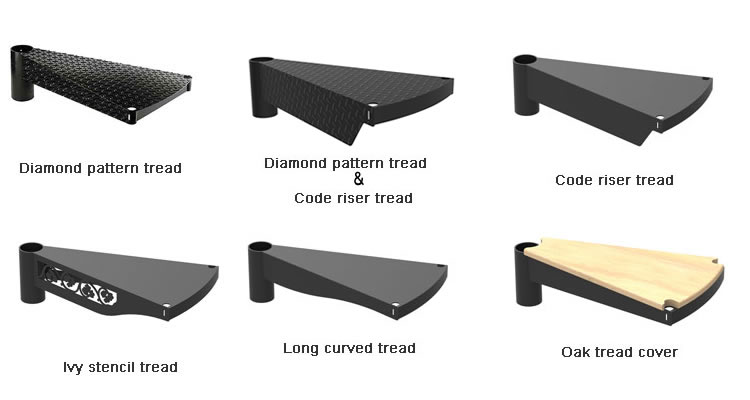

Tread Upgrade Options

Upgrade your treads?

Upgrade the standard smooth closed end treads to one of the following options:

Diamond pattern tread: provides a non-skid surface
Oak tread cover: Red oak treads are nosed and sanded to a fine finish and ready to be stained or painted.
Long curved tread: Classic steel tread with closed ends and curved riser.
Ivy stencil tread: Stenciled steel tread with ivy design and closed ends.
Code riser tread: Code risers will maintain a space less than 4" between treads. Closed ends.
Diamond pattern tread with Code Riser: provides a non-skid surface with Code risers to maintain a space less than 4" between treads. Closed ends.

Quantity

+ -

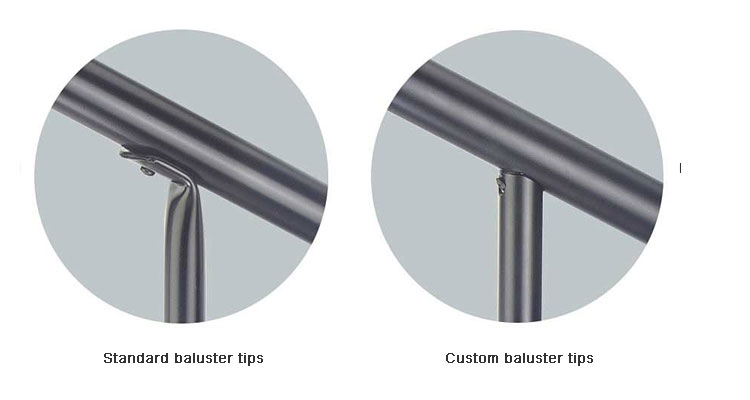

Baluster Tip Upgrade

Upgrade your baluster tips?

Upgrade the standard formed baluster tip to a custom mitered baluster tip specific to the stair angle.

Quantity

+ -

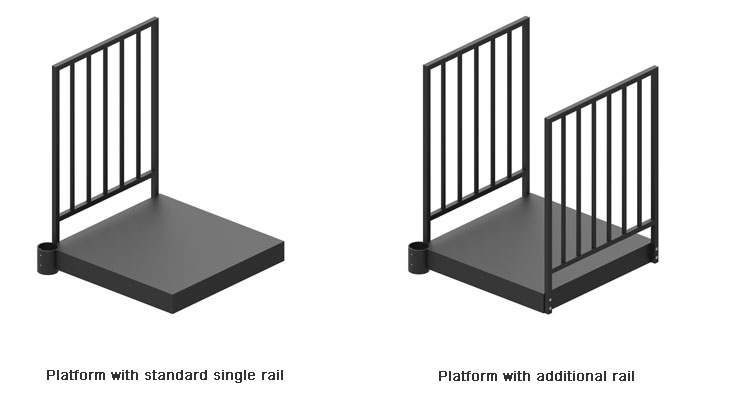

Additional Platform Rail

Add an additional platform rail?

One railing section is included standard with the spiral stair kit that extends from the pole along one side of the platform. Add an additional platform rail section to your stair platform to create a parallel or L-shaped ( 90 degree) handrail configuration on the platform. This is used when one side of the platform will not be against a wall, such as when the platform is installed in the middle of a deck or balcony.

Quantity

+ -

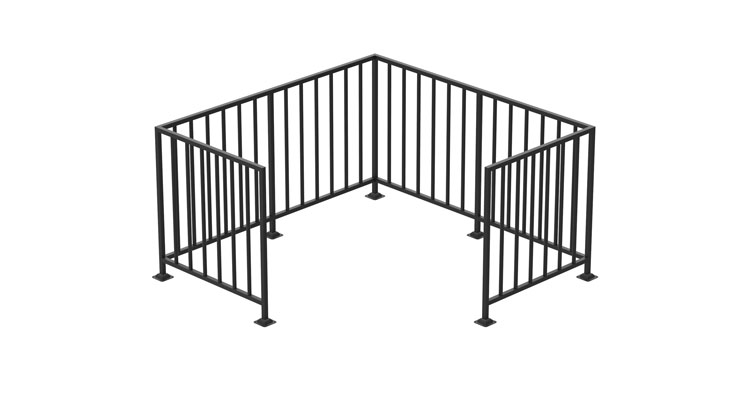

Optional Well Rail

Add well rail?

Sold by the linear foot (each qty selected will be for a foot of railing), the strong 1" x 1" steel frame railing is used as railing for balconies or around stair opening.

Quantity

+ -

* Required Fields

Floor to Floor Height

Floor to Floor Height for Continuous Sleeves

Stair kits that include the continuous sleeve option must include an exact floor to floor measurement as the continuous sleeves are manufactured to fit this exact height. Please enter in your exact floor to floor measurement below if you are adding continuous sleeves to your stair..

Enter In Your Floor to Floor Height

Your Customization

72"D Classic Iron Code Compliant Spiral Stair Kit - Primed Steel - 85" - 152"

72"D Classic Iron Code Compliant Spiral Stair Kit - Primed Steel - 85"H - 152"H

In stock

$5,243.70

Summary

Description

The Classic Iron code compliant primed steel spiral staircase kit, our most popular model of spiral staircase, provides the same high quality and easy to install spiral stair kit that has been manufactured for over 35 years with easy to configure options. For new construction or an addition/renovation the classic iron steel spiral stair will fit your style and budget. With no special tools required for installation any DIY homeowner or contractor can install one.

This code compliant kit is designed to comply with Universal Building Code (UBC), International Fire Code (IFC), Building Officials Code Administrators International (BOCA) and International Residential Code (IRC). Always check with you local code enforcement officer for local code requirements.

Finish:

A standard black primer finish is included in the cost of the spiral metal stairs. A very high quality primer is used that will prepare the stair for paint to be applied once it is installed. In some instances customers who do not plan on using the stair very often or it is installed in a place where it is not seen actually leave the primer as the only paint coat due to its high quality. We often hear that people think the primer coat is all they need once they see it and depending upon where and how often it is used.

Features:

Hidden weld and hardware design visually maintains sharp, crisp lines for an overall finished look.
Enclosed tread ends - stiffens the stair and helps to hide assembly hardware
1" round steel balusters with press-formed tips - pre-set to the angle of the stair for a smooth connection to the handrail.
Baluster pockets - which allows the baluster to mount inside the tread corner

The Classic Iron code compliant primed steel spiral stair includes:

Prime coat black finish
Center column, base plate and top cap
1" outside diameter steel balusters (1 per tread)
Center balusters to reduce spacing to less than 4" between balusters
Adjustable smooth steel treads with closed ends
1-1/4" outside diameter aluminum handrail
Platform railing - 1" x 1" frame with 1" round balusters, platform (square)
40" tall column extension
Hardware for Interior Installations Included.

Height Range	Num Rises/Treads	Degree of Rotation	Minimum Finished Opening Size	Platform Size	Clear Walking Path
85" - 95"	10 / 9	270°	74" x 74"	37" x 37"	32"
93" - 104"	11 / 10	300°	74" x 74"	37" x 37"	32"
101" - 114"	12 / 11	330°	74" x 74"	37" x 37"	32"
110" - 123"	13 / 12	360°	74" x 74"	37" x 37"	32"
119" - 133"	14 / 13	390°	74" x 74"	37" x 37"	32"
127" - 142"	15 / 14	420°	74" x 74"	37" x 37"	32"
136" - 152"	16 / 15	450°	74" x 74"	37" x 37"	32"
